目的

本文对k8s中Ingress反向代理进行详细剖析，详细介绍了原理，并通过实际例子来详细说明。

简介

Kubernetes 暴露服务的有三种方式：分别为 LoadBlancer Service、NodePort Service、Ingress。

官网对 Ingress 的定义为管理对外服务到集群内服务之间规则的集合。通俗点讲就是它定义规则来允许进入集群的请求被转发到集群中对应服务上，从来实现服务暴露。 Ingress 能把集群内 Service 配置成外网能够访问的 URL，流量负载均衡，终止SSL，提供基于域名访问的虚拟主机等等。

LoadBlancer

LoadBlancer Service 是 Kubernetes 结合云平台的组件，如国外 GCE、AWS、国内阿里云等等，使用它向使用的底层云平台申请创建负载均衡器来实现，有局限性，对于使用云平台的集群比较方便，但有局限，费用高。

NodePort

NodePort Service 是通过在节点上暴露端口，然后通过将端口映射到具体某个服务上来实现服务暴露，比较直观方便，但是对于集群来说，随着 Service 的不断增加，需要的端口越来越多，很容易出现端口冲突，而且不容易管理。当然对于小规模的集群服务，还是比较不错的。但是还是有安全风险，因为看过前面k8s教程，并动手操作搭建的同学都知道，在搭建前会把各个节点的防火墙等等都关闭。那么如果用这种方式又打开很多端口，那么安全会面临很大挑战。

总结：以上两种服务从各方面看似都不太理想，所以通过情况下，我们会通过Ingress对象来实现安全，方便统一管理。

Ingress概述

在k8s集群中，我们知道service和pod的ip为内网ip，仅能在集群内部才可以访问。如果外部应用想要直接访问集群内的服务，就需要把外部请求通过负载均衡转发到service上，然后再由kube-proxy组件将其转发给相关的pod。

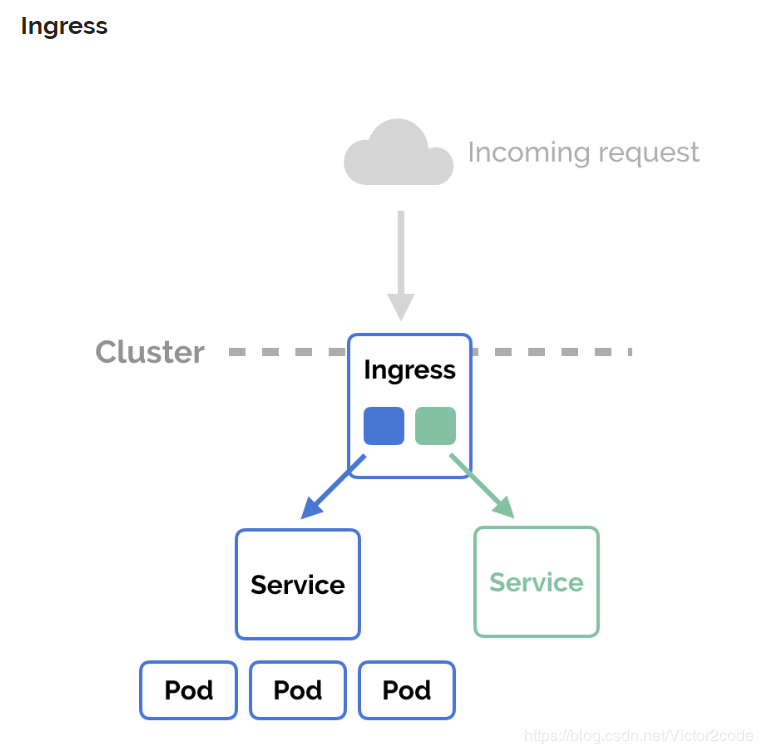

而Ingress的作用就是为进入集群的请求提供路由规则集合和转发。通俗点就是提供外部访问集群的入口，将外部的请求转发到集群内部service上。

Ingress组成

Ingress 使用开源的反向代理负载均衡器来实现对外暴露服务目的，比如用Nginx、Apache、Haproxy等。用的最多的是使用nginx来做的。

Nginx Ingress 一般有三个组件组成：

  • ingress 是kubernetes的一个资源对象，用于编写定义规则。将nginx的配置抽象成一个Ingress对象，当用户每添加一个新的服务，只需要编写一个新的ingress的yaml文件即可。
  • 反向代理负载均衡器 通常以Service的Port方式运行，接收并按照ingress定义的规则进行转发，通常为nginx，haproxy，traefik等，本文使用nginx。
  • ingress-controller 监听apiserver，获取服务新增，删除等变化，并结合ingress规则动态更新到反向代理负载均衡器上，并重载配置使其生效。
    以上三者有机的协调配合起来，就可以完成 Kubernetes 集群服务的暴漏。

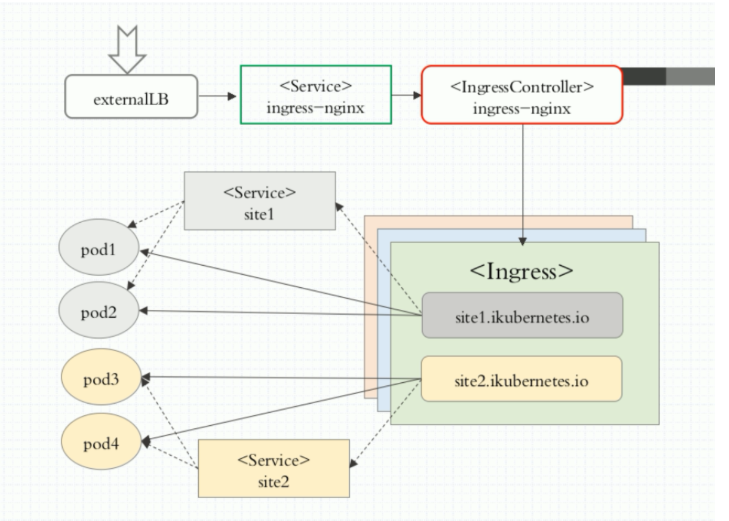

组件说明

externalLB : 外部的4层负载均衡器
ingress-nginx : nodePort 类型的 service 为 ingress-nginx 的 pod 接入外部流量
ingress-nginx : ingress-nginx pod, 负责创建负载均衡
: Ingress 根据后端 Service 实时识别分类及 IP 把结果生成配置文件注入到 ingress-nginx pod 中
site1 : Service 对后端的pod 进行分类(只起分类作用)

Ingress工作原理

  • ingress controller通过和kubernetes api交互，动态的去感知集群中ingress规则变化。
  • 然后读取它，按照自定义的规则，规则就是写明了那个域名对应哪个service，生成一段nginx配置。
  • 在写到nginx-ingress-controller的pod里，这个Ingress controller的pod里运行着一个Nginx服务，控制器会把生成的nginx配置写入/etc/nginx.conf文件中。
  • 然后reload一下使配置生效，以此达到分配和动态更新问题。

Ingress解决痛点

动态配置服务
如果按照传统方式，当新增加一个服务时，我们可能需要在流量入口加一个反向代理指向我们新的服务，而使用ingress，只需要配置好ingress，当服务启动时，会自动注册到ingress当中，不需要额外的操作。

减少不必要的Port暴露（安全，端口容易管理）
我们知道部署k8s时，是需要关闭防火墙的，主要原因是k8s的很多服务会以nodeport方式映射出去，这样对于宿主机来说是非常的不安全的，而ingress可以避免这个问题，只需要将ingress自身服务映射出去，就可代理后端所有的服务，则后端服务不需要映射出去。

环境

k8s 版本为1.18.3

版本API 相关弃用

所有资源的 API apps/v1beta1 和 apps/v1beta2 都将弃用，请改用 apps/v1 替代。
daemonsets, deployments, replicasets 资源的 API extensions/v1beta1 将被弃用，请改用 apps/v1 替代。
networkpolicies 资源的 API extensions/v1beta1 将被弃用，请改用 networking.k8s.io/v1 替代。
podsecuritypolicies 资源的 API extensions/v1beta1 将被弃用，请使用 policy/v1beta1 替代。

部署Ingress-nginx

可以将上面的Ingress理解为在集群的前端加了一个Nginx，用来提供Nginx所能提供的一切功能，例如基于url的反向代理，https认证，用户鉴权，域名重定向等等

需要注意几点：

  • Nginx是基于url的，如果没有DNS解析url到集群中任意ip可以考虑hosts文件劫持

  • Nginx的本质也是NodePort的方式暴露给集群外的一个特殊Service

  • Nginx的配置文件根据Ingress的规则自动添加和修改

    更详细的介绍可以查看[官方网站](https://kubernetes.github.io/ingress-nginx/)。
    下面通过nodepore和ingree-nginx对比实战，让你充分理解。

先用NodePort测试

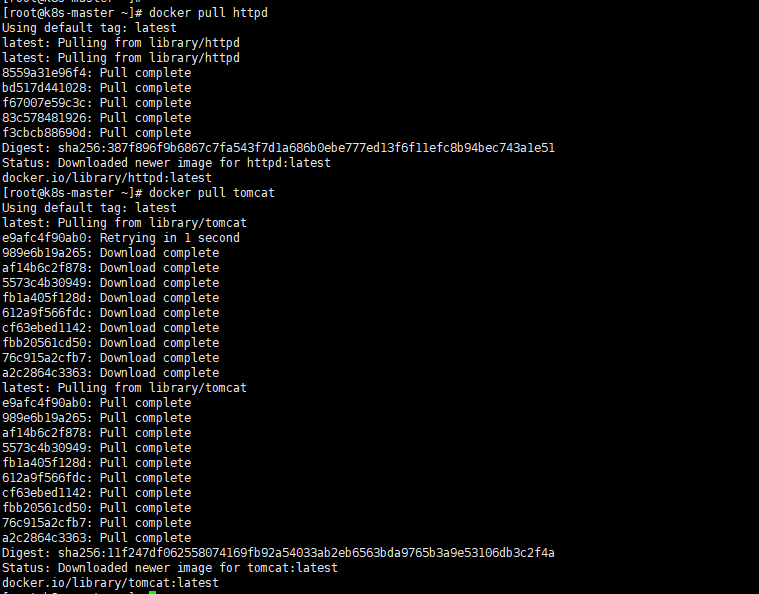

拉取镜像

需要使用到httpd、tomcat镜像

1
2
docker pull httpd
docker pull tomcat

创建namespace
1
2
3
4
5
6
7
8
9
10
11
##创建yaml文件：
vim ns.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-test

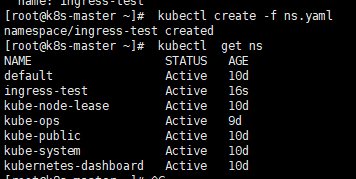

#创建并查看namespace：
 kubectl create -f ns.yaml
 kubectl  get ns

创建deployment及service资源

创建httpd及service资源文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
#mkdir ingress-nginx
#cd ingress-nginx

#vim httpd.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpd
  namespace: ingress-test
spec:
  replicas: 3
  selector:
    matchLabels:
      name: httpd
  template:
    metadata:
      labels:
        name: httpd
    spec:
      containers:
      - name: httpd
        image: 10.145.197.182/ops/httpd:latest  #镜像从私有仓库中进行拉取
---
apiVersion: v1
kind: Service
metadata:
  name: httpd-svc
  namespace: ingress-test
spec:
  type: NodePort
  selector:
    name: httpd
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    nodePort: 32134

创建tomcat及service资源文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
# vim tomcat.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat
  namespace: ingress-test
spec:
  replicas: 3
  selector:
    matchLabels:
      name: tomcat
  template:
    metadata:
      labels:
        name: tomcat
    spec:
      containers:
      - name: tomcat
        image: 10.145.197.182/ops/tomcat:latest
---
apiVersion: v1
kind: Service
metadata:
  name: tomcat-svc
  namespace: ingress-test
spec:
  type: NodePort
  selector:
    name: tomcat
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080
    nodePort: 32135

创建并查看

1
2
3
4
5
6
7
#创建
kubectl create -f  httpd.yaml
kubectl create -f tomcat.yaml

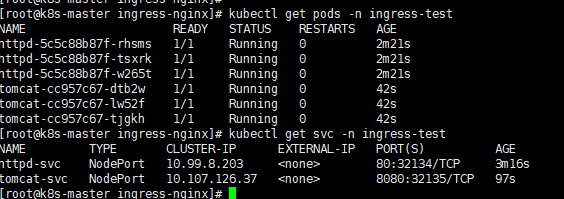

#查看状态
kubectl get pods -n ingress-test
kubectl get svc -n ingress-test

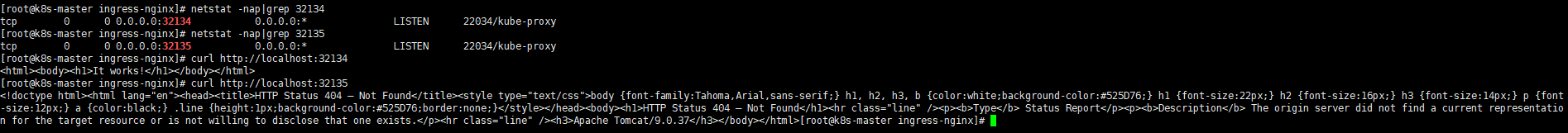

可以看到通过nodeport暴露的方式是没有问题的，但是到该种方式在大规模的集群服务中，有很大的缺陷，所以接下来通过ingress-nginx进行实现。

创建ingress-nginx

从GitHub上下载yaml文件：官方地址

1
2
3
4
5
6
7
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/static/provider/cloud/deploy.yaml

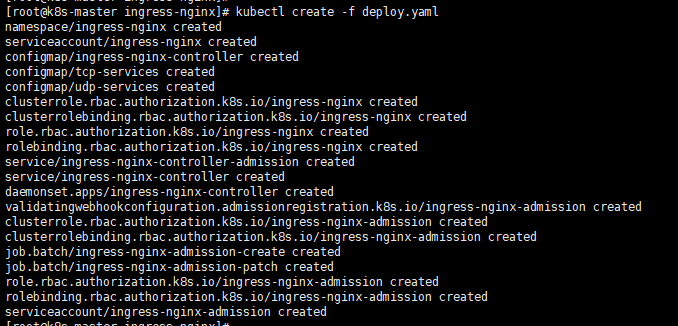

kubectl apply -f deploy.yaml

# 部署环境为私有环境没有lb 所有把Deployment改成DaemonSet 同时网络模式使用hostNetwork
# 同时配文件 跟启动参数修改
# kubelet 参数node-ip 为ipv6 模式记得修改 service ipFamily: IPv6 模式不然新版本webhook 会报错
# 报错内容 Error from server (InternalError): error when creating "STDIN": Internal error occurred: failed calling webhook "validate.nginx.ingress.kubernetes.io": Post https://ingress-nginx-controller-admission.ingress-nginx.svc:443/extensions/v1beta1/ingresses?timeout=30s: no endpoints available for service "ingress-nginx-controller-admission"
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
#对照如下deploy.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  allow-backend-server-header: "true"
  client-body-buffer-size: 1024k
  enable-underscores-in-headers: "true"
  generate-request-id: "true"
  ignore-invalid-headers: "true"
  large-client-header-buffers: 4 128k
  log-format-upstream: $remote_addr - [$remote_addr] - $remote_user [$time_local]
    "$request" $status $body_bytes_sent "$http_referer" "$http_user_agent" $request_length
    "$http_x_forwarded_for" $remote_addr $request_time [$proxy_upstream_name] $upstream_addr
    $upstream_response_length $upstream_response_time $upstream_status $req_id $host
  max-worker-connections: "65536"
  proxy-body-size: 8192m
  proxy-buffer-size: 64k
  proxy-connect-timeout: "300"
  proxy-next-upstream-timeout: "10"
  proxy-read-timeout: "300"
  proxy-send-timeout: "300"
  reuse-port: "true"
  server-tokens: "false"
  ssl-redirect: "false"
  upstream-keepalive-connections: "10000"
  upstream-keepalive-requests: "1000"
  upstream-keepalive-timeout: "300"
  worker-cpu-affinity: auto
---
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: tcp-services
  namespace: ingress-nginx
data:
---
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: udp-services
  namespace: ingress-nginx
data:
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - update
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - update
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader-nginx
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - endpoints
    verbs:
      - create
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ipFamily: IPv6 # ipv4 ¿ÉÒÔ²»Ìí¼Ó
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ipFamily: IPv6   # ipv4 ¿ÉÒÔ²»Ìí¼Ó
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/component: controller
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      hostNetwork: true
      dnsPolicy: ClusterFirstWithHostNet
      containers:
        - name: controller
          image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.33.0
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --election-id=ingress-controller-leader
            - --ingress-class=nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --annotations-prefix=nginx.ingress.kubernetes.io
            - --v=2
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          livenessProbe:
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            timeoutSeconds: 1
            successThreshold: 1
            failureThreshold: 3
          readinessProbe:
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            timeoutSeconds: 1
            successThreshold: 1
            failureThreshold: 3
          ports:
            - name: http
              containerPort: 80
              hostPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              hostPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              hostPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
            - name: localtime
              mountPath: /etc/localtime
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
        - name: localtime
          hostPath:
            path: /etc/localtime
            type: File
  updateStrategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1beta1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
  namespace: ingress-nginx
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    rules:
      - apiGroups:
          - extensions
          - networking.k8s.io
        apiVersions:
          - v1beta1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /extensions/v1beta1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-2.10.0
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 0.33.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: docker.io/jettech/kube-webhook-certgen:v1.2.2
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.ingress-nginx.svc
            - --namespace=ingress-nginx
            - --secret-name=ingress-nginx-admission
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-2.10.0
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 0.33.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: docker.io/jettech/kube-webhook-certgen:v1.2.2
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=ingress-nginx
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-2.10.0
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 0.33.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  namespace: ingress-nginx

1
2
3
#查看ingress-nginx pod是否运行
kubectl get svc -n ingress-nginx
kubectl get pods -n ingress-nginx

创建ingress规则

yaml文件内容如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 创建该规则就是用于分别代理后端的apache和tomcat服务。
vim ingress-rule.yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: test-ingress
  namespace: ingress-test
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: ingress.test.com   #后端应用通过该域名进行访问
    http:
      paths:
      - path: /   #apache的网页根目录：/
        backend:
          serviceName: httpd-svc
          servicePort: 80
      - path: /tomcat   #tomcat的网页更目录：/tomcat
        backend:
          serviceName: tomcat-svc
          servicePort: 8080
1
2
3
4
5
6

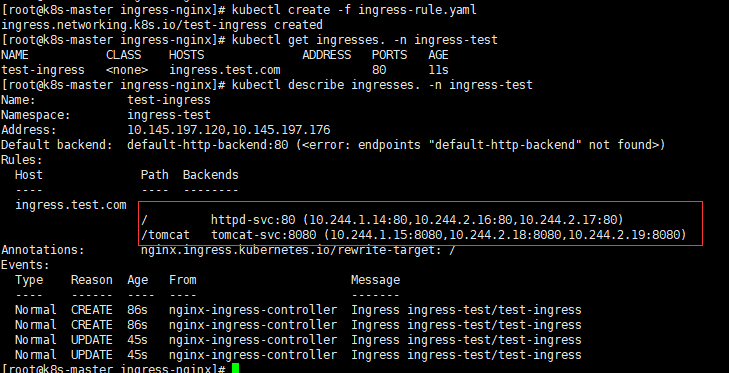

# 规则生效
kubectl create -f ingress-rule.yaml
# 查看绑定信息
kubectl get ingresses. -n ingress-test
# 查看describe查看详细信息
kubectl describe ingresses. -n ingress-test

1
2
3
4
# 查看状态
kubectl get pods -n ingress-nginx

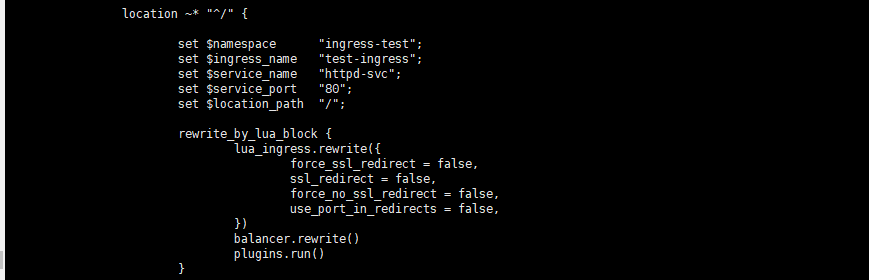

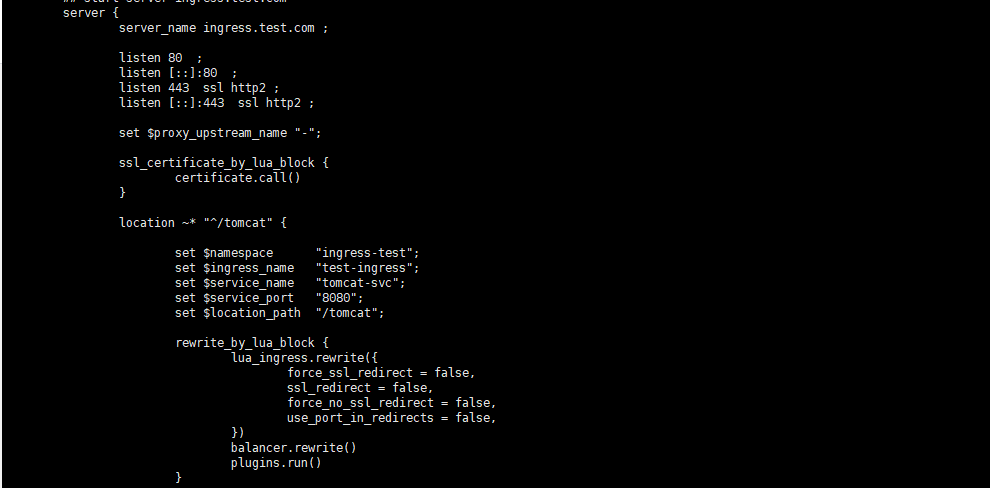

# 进入ingress容器查看nginx的配置文件
kubectl exec -it -n ingress-nginx ingress-nginx-controller-cf5dx /bin/bash

通过查看nginx配置文件，我们可以清楚的知道之前所说的ingress-controller会根据我们编写的ingress规则（代理后端应用），动态的去更改nginx的配置文件。

通过域名访问集群内的服务

1
2

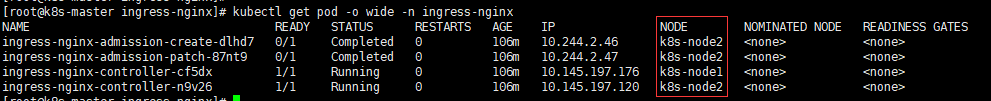

#当前我们需要知道ingress运行在那个node上
kubectl get pod -o wide -n ingress-nginx

1
2
3
#在windows主机上将node02的ip地址添加到hosts文件中，做域名解析：
#修改路径：C:\Windows\System32\drivers\etc\hosts（需要给予修改权限）
10.145.197.120  ingress.test.com  #ip无论是node1,2都可以添加该条内容

ingress-nginx 双栈部署成功。

基于虚拟主机的ingress

搭建虚拟主机的目的：实现以不同的域名访问同一个web界面
本文就仅基于上面的httpd服务，我们为该服务绑定两个不同的域名来访问：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#vim ingress-rule.yaml

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: test-ingress
  namespace: ingress-test
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: ingress.test.com   #后端应用通过该域名进行访问
    http:
      paths:
      - path: /   #apache的网页根目录：/
        backend:
          serviceName: httpd-svc
          servicePort: 80
      - path: /tomcat   #tomcat的网页更目录：/tomcat
        backend:
          serviceName: tomcat-svc
          servicePort: 8080
  - host: ingress.test2.com   #只需要在rules字段下添加另一个host字段即可。
    http:
      paths:
      - path: /
        backend:
          serviceName: httpd-svc          #注意，serviceName所有虚拟主机必须保持一致
          servicePort: 80
1
2
3

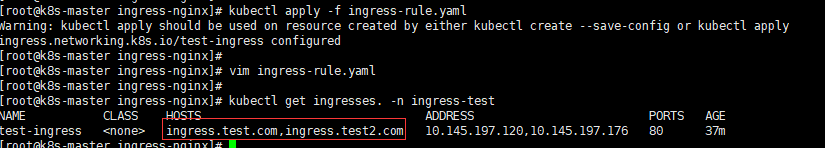

#创建新的虚拟主机并查看
kubectl apply -f ingress-rule.yaml
kubectl get ingresses. -n ingress-test

1
2
3
4

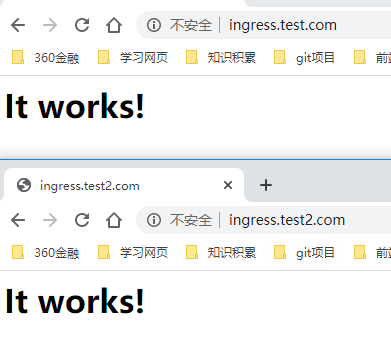

#通过不同的域名进行访问httpd网页：
#因为我们没有搭建dns服务器，所以需要在windows hosts文件将新的域名进行绑定
10.145.197.176 ingress.test.com
10.145.197.120 ingress.test2.com

基于HTTPS的Ingress

通过部署ingress后，我们不必按照常规的，为后端所有的pod都颁发一个证书，只需为ingress代理的域名颁发证书就能够实现。

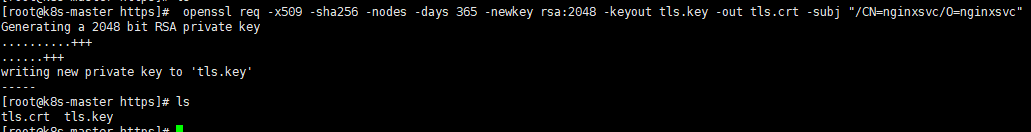

创建CA证书

1
2
3
4
5
mkdir https
cd https
openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=nginxsvc/O=nginxsvc"  #参数可根据需求自定义
#查看
ls

创建deployment，service，ingress资源:（以nginx服务来实践）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
vim nginx-ingress2.yaml

apiVersion: apps/v1    #创建deployment
kind: Deployment
metadata:
  name: web
  namespace: ingress-test
spec:
  selector:
    matchLabels:
      name: test-web
  template:
    metadata:
      labels:
        name: test-web
    spec:
      containers:
      - name: web
        image: nginx:latest  #私有仓库中的镜像（已提供）
---
apiVersion: v1    #创建service，关联上述deployment
kind: Service
metadata:
  name: web-svc
  namespace: ingress-test
spec:
  selector:
    name: test-web
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
---
apiVersion: extensions/v1beta1  #创建ingress规则
kind: Ingress
metadata:
  name: test-ingress2
  namespace: ingress-test
spec:
  tls:          #为域名颁发证书
    - hosts:
      - ingress.nginx.com
      secretName: tls-secret
  rules:
    - host: ingress.nginx.com
      http:   #注意，此处字段为http，不支持https
        paths:
        - path: /
          backend:
            serviceName: web-svc
            servicePort: 80
1
2
3
4
5
6
7
8

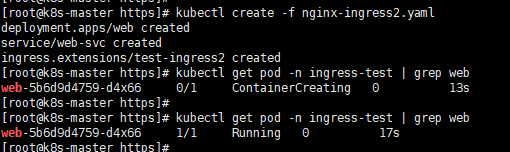

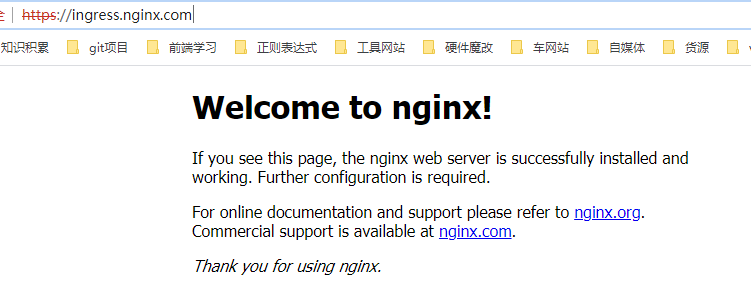

# 创建基于https的ingress服务
kubectl create -f  nginx-ingress2.yaml
# 查看ingress资源和映射的service端口
kubectl get pod -n ingress-test | grep web
kubectl get ingresses. -n ingress-test
#可以看到新创建的ingress提供了80和443端口

kubectl get svc -n ingress-nginx

通过ingress代理的443端口访问nginx服务

1
2
#在hosts文件中绑定域名：
10.145.197.120 ingress.nginx.com

基于HTTPS的ingress服务成功实现，至此，ingress-nginx部署完成。。。。。。。

-------------本文结束感谢您的阅读-------------

本文标题:k8s之详解Ingress并实战

文章作者:豌豆多多

发布时间:2020年07月07日 - 17:07

最后更新:2020年08月04日 - 14:08

原始链接:https://wandouduoduo.github.io/articles/f6f38be4.html

许可协议: 署名-非商业性使用-禁止演绎 4.0 国际 转载请保留原文链接及作者。

原创技术分享，您的支持将鼓励我继续创作
